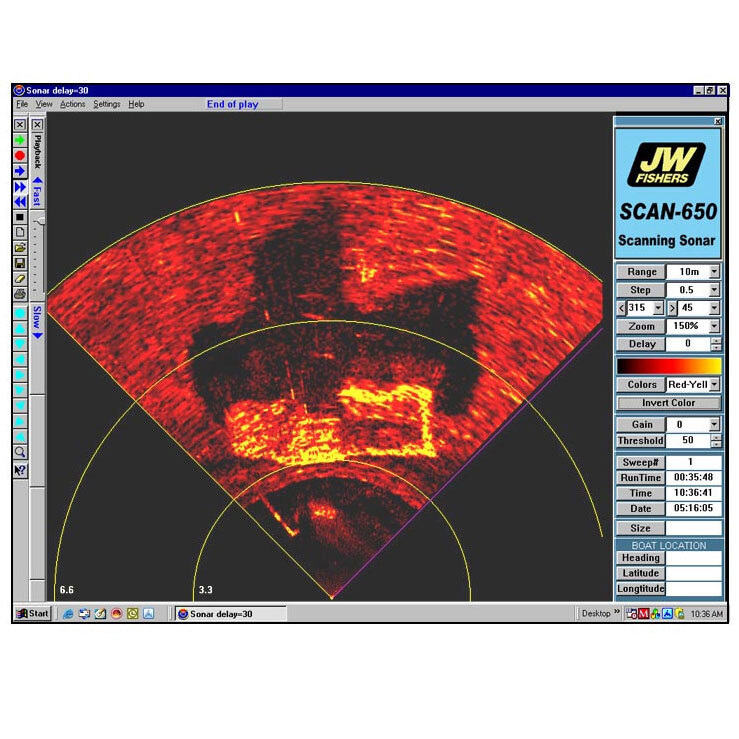

J.W. Fisher's Scan-650 Scanning Sonar SKU: JWFSS Mfr. Part: SCAN-650 Item Includes The system package includes the sonar head with downstairs electronics - cable - surface sonar processor - software - and A/D board for your computer. Description Scanning sonar is an ideal tool for underwater search because it produces a picture of the underwater environment regardless of the water visibility. It does this by sending out a sound wave that reflects off objects on the bottom or in the water column. The reflected wave returns to the sonar head where it is received and sent to the surface for display. The reflected sonar image is displayed on a laptop computer. Fishers SCAN-650 is a high-performance scanning sonar system that can be mounted on an ROV, pole-mounted for use from a small boat in swallow water or mounted on a tripod on the bottom. The scanning sonar serves as an obstacle avoidance system and provides target identification. The sonar beam sweeps in a 360° circle (or any portion of 360°) allowing any object in the sonar's field of view to be seen and displayed on the computer monitor. In a typical application the sonar head or transducer is mounted on top of an ROV. The head scans a circle around the ROV and sees targets in all directions, including those that are well beyond camera range. The sonar images are displayed on the topside computer. The operator, using the sonar for direction bearings, drives the ROV to the various targets for identification and videotaping. Scanned data files are stored on the PC's hard drive along with boat's GPS position, time, date, and other pertinent data. The recorded files can be played back at any time. Software is provided to allow post-processing of data including editing and merging of files. Small file sections, including screenshots, can be edited out and copied to a small file for emailing. A sizing tool is included in the software which allows the operator to determine the size of the targets on the screen. Scanning sonar does operate very similar to radar; a signal is sent out from its antenna and then it listens for return signals. The signal is fan shaped and very narrow in width. The return echoes are displayed on the computer screen as a very narrow line that changes color along its length depending on the intensity of the echoes. After the line is displayed, the antenna (called a transducer in sonar) rotates (steps) slightly to the right and the sequence is repeated. The smaller the rotating step of the antenna is (1/2, 1, 1 1/2, or 2 degree) the higher the resolution of the picture. The transducer continuously steps, and the display quickly fills with the sonar image. The sequence is repeated, and if nothing moves (targets or sonar), then the identical picture will be overlaid over the previous picture (one line at a time). SCAN-650 Operator Controls: Fishers scanning sonar's have a full set of operator controls and indicators which are conveniently located on the front of the sonar processor and on the PC screen. The controls are: Record and Playback: Complete set of controls for both recording and playback of files. Range Setting: Selection from 16.5' to 131' (5 meters to 40 meters) allowing both short range scan for the smallest of targets to long range for locating larger targets. The range settings are 16.5', 33', 66' and 131' (5, 10, 20, and 40 meters). Step Degree From 1/2° to 2° in four steps. The smaller the step degree the higher the resolution and detail, the larger the step degrees the coarser the picture, but the faster the sweep will be. From and To Sweep Angles: The system can perform continuous 360° sweeps or back and forth" sweeps between any two selected degree angles. Zoom: Zooms in or expands/enlarges picture. Print Delay: Delays start of image on screen. Size: Displays size of selected target. Amplifier Adjustments: Allow the operator to fine-tune the received signal for the sharpest displayed picture. Gain: Increases overall gain of picture. Colors: Different color scales are selectable. Color Bar: Displays the range of colors selected. A small return signal displays the color on the left end of the bar; a large return displays the color on the right end of the bar. Invert Color: Inverts the color bar to give a different look to the target. SCAN-650 DISPLAY: In addition to the scanned sonar signal a variety of information is displayed and recorded including: Time, Date, Boat Lat/Lon, Range, Step degrees, Start and Stop sweep degrees, Zoom, Overall digital gain, and Color bar selected. LAPTOP REQUIREMENT: USB port, Windows 98 or higher, VISTA, Win 7 The system package includes the sonar head with downstairs electronics, cable, surface sonar processor, software, and A/D board for your computer. The A/D board significantly improves data transfer time to the computer which increases the sweep speed (takes less time to complete each sweep). Fishers SCAN-650 is ruggedly built for commercial operations. Features J.W. Fisher's Scan-650 Scanning Sonar: High Resolution Picture of Sea Bottom Fast Scan Even On 1/2° Degree Steps 1/2°, 1°, 1.5° , or 2° Steps 360° Continuous Sweep, Or Any Portion of 360° Target Sizing 256 Colors For Laptop or Desktop PC Frequency: 650 MHz Beam Width (horizontal x vertical): 2.4° Degrees by 40° Degrees Range: 16.5', 33', 66' and 131' (5, 10, 20, and 40 meters) Depth Rating: 1,000' (305 meters) Input Voltage: Sonar Processor 9-18 Volts DC or 120 Volt AC (5 Watts) Sonar Head (from Sonar Processor) or 9-36 Volts DC from ROV (7 Watts) Cable: 2 or 4 Conductor Dimensions: Sonar Processor Box (W x D x H) 8" x 9" x 2.5" (20.3cm x 23cm x 6.4cm) Cable 150' (45.75 meters) 650A Sonar (Dia. x L) 3.5" to 7" x 10.5" (9cm to 17.8cm x 26.7cm) 650B Sonar Head (Dia. x L) 3.5" x 4.25" (9cm x 10.8cm) 650B Housing (Dia. x L) 3.5" x 9" (9cm x 23cm) Weight: Sonar Processor Box 2 lbs. (0.9 kg) Cable 7 lbs. (3.2 kg) 650A Sonar Head & Housing 3.6 lbs. (1.6 kg) on Land Neutrally Buoyant in Water 650B Sonar Head 1.4 lbs. (0.6 kg) on Land, 6 oz. (171 g) in Water 650B Housing 2.8 lbs. (1.3 kg) on Land, 0.0 lbs./kg in Water Owner's Manual Specifications Frequency 650 kHz Beam Width Horizontal x Vertical: 2.4° x 40° Range 16.5', 33', 66' and 131' (5, 10, 20, and 40 meters) Depth Rating 1,000' (305 meters) Input Voltage Sonar Processor 9-18 Volts DC or 120 Volt AC (5 Watts), Sonar Head (from Sonar Processor) or 9-36 Volts DC from ROV (7 Watts) Cable 2 or 4 Conductor Sonar Processor Box Dimensions (W x D x H): 8" x 9" x 2.5" (20.3cm x 23cm x 6.4cm) Cable Dimensions Length: 150' (45.75 meters) 650A Sonar Dimensions (Dia. x L) 3.5" to 7" x 10.5" (9cm to 17.8cm x 26.7cm) 650B Sonar Head Dimensions (Dia. x L): 3.5" x 4.25" (9cm x 10.8cm) 650B Housing Dimensions (Dia. x L): 3.5" x 9" (9cm x 23cm) Sonar Processor Box Weight 2 lbs. (0.9 kg) Cable Weight 7 lbs. (3.2 kg) 650A Sonar Head & Housing Weight 3.6 lbs. (1.6 kg) on Land Neutrally Buoyant in Water 650B Sonar Head Weight 1.4 lbs. (0.6 kg) on Land 6 oz. (171 g) in Water 650B Housing Weight 2.8 lbs. (1.3 kg) on Land 0.0 lbs./kg in Water Feedback is a very powerful tool. It gives sellers a reason to conduct business at the highest level of honesty & respect. If you feel like you have a reason to leave neutral or negative feedback, please contact us beforehand, I’m sure we can work it out. Please contact us using the ASK A QUESTION link found at the bottom of the page . About us Many years ago Scuba was the first Internet-based divers supply company. We're still the number one store for scuba diving and snorkeling equipment. Thousands and thousands of satisfied customers swear by our service. Contact Us Got a question? Please contact us using the ASK A QUESTION link found at the bottom of the page Hours: Mon-Thu: 9:30-5:30, Friday: 9:30-12:30 Relist Please do not request to have an item relisted if you do not see it any more. If we are able to relist, we will do so even without your request. Item availability We will only post items that are in stock, ready to ship. Payment / Shipping Payment Items can be returned within 30 Days of purchase, and must be returned in original packaging, pending a return authorization. Shipping Most purchases are shipped within 1 day of payment. We will not ship outside of the USA. We supply tracking information 24 hours after the shipment leaves our warehouse. Please check your email and/or Ebay messages & make sure our email doesn’t go into spam or junk. No store pick-ups for Ebay items. We will not mark any package as a gift. We do not ship to PO boxes. We ship to APO or FPO addresses, please contact us for more information. Tracking There is no need to email us for tracking info. You will get that automatically. Returns We think you'll agree that Scuba has the best return policy in the industry. You have 60 days from the date of invoice to return the merchandise for full refund. Inspect the equipment when it arrives, and if you're not fully satisfied you can return it for a full refund (less the shipping charge) as long as you haven't used it. We won't even ask why you've changed your mind. You'll need the original manufacturers labeled packaging with all materials, manuals and blank warranty cards. Books, CD’s, DVD’s may not be returned (due to copyright laws). Sorry. Merchandise returned in used condition or not in its original packaging may be refused, and the carrier will charge you freight in both directions. Please allow 2 days from the date we received the package for us to process your return.
