Description

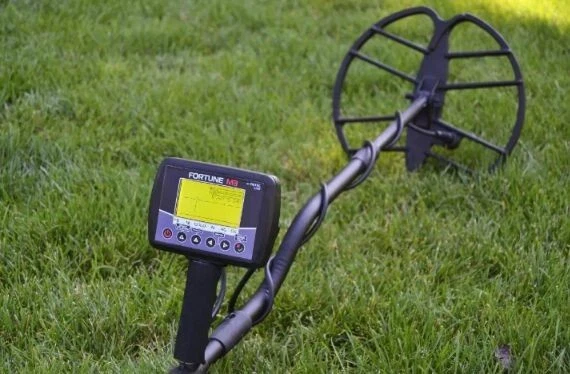

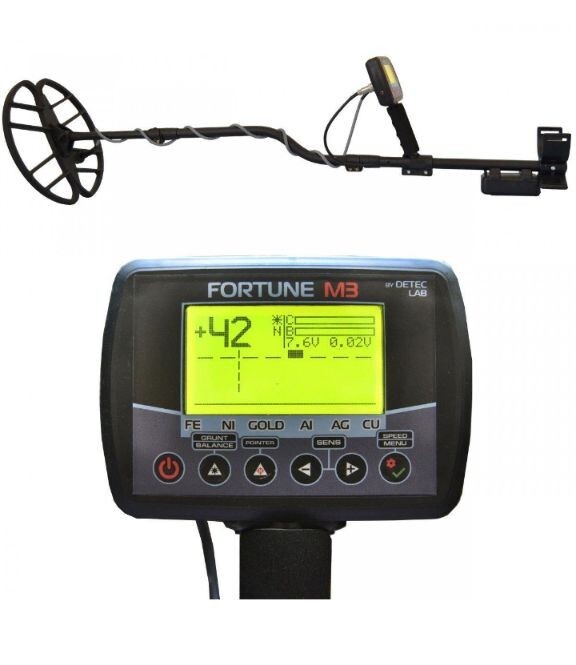

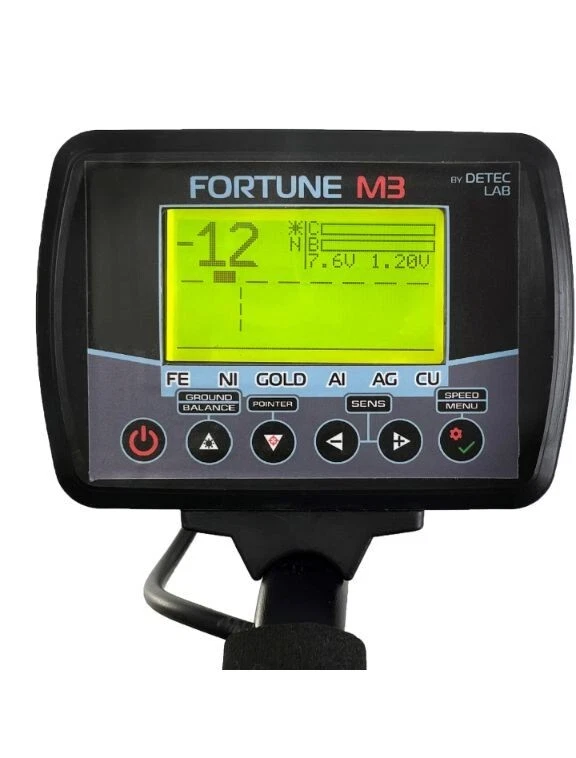

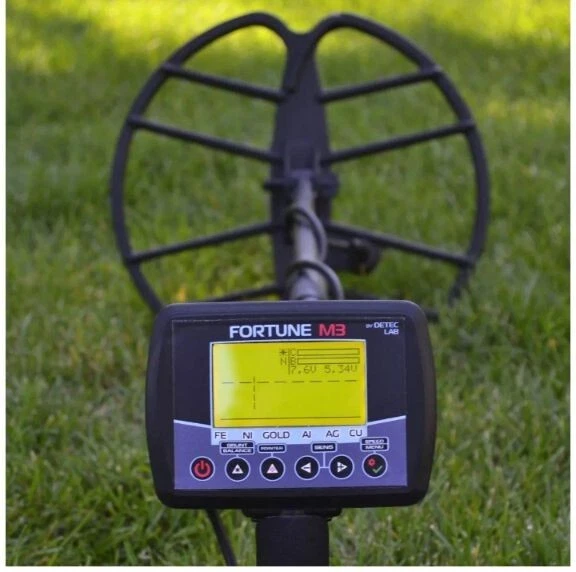

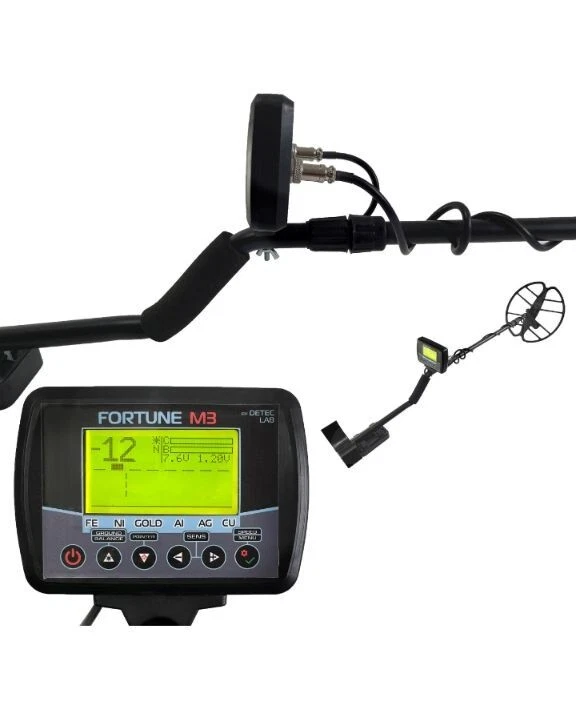

The Fortuna M3 with PL2943 body and 7×4 Winstar large display is a selective IB metal detector with metal recognition, working on the principle of induction balance. Metal discrimination is a numerical and columnar display of VDI, as in more expensive devices, such as MINELAB, FISHER, XP Metal Detectors, GARRETT (different objects and metal alloys have their own digital value). The device is multi-frequency, you can use different coils with different frequencies. The ability to mask, exclude unwanted metal from the search. For example, to exclude iron. Characteristics: Discrimination: VDI number (VDI), synograph. Target voice: 90-tone, 4-tone, two-tone. Ground Balance: manual, automatic. Adjustment to ferrite: automatic. Compensation of the detector balance deviation: automatic. Display backlight. Winstar 7×4 display. The latest firmware is available. Masks. Ability to mask unwanted metal. Several search algorithms. Pinpointing. Adjustment of the device to the frequency of the existing detector. Ability to connect a search sensor: 5-20 kgf. DD sensor 30x32 cm. PL2943WH housing (dimensions): 140 100 30 mm. There are two versions of coils, standard and waterproof, with waterproof you can search with this metal detector both on land and in water! The PL2943WH is a slim instrument waterproof housing made of impact-resistant heat-resistant ABS plastic UL-94V0. It provides protection against dust and moisture penetration according to the IP65 standard. The main characteristics of this assembly: - lithium-ion battery 2200 (real capacity) mAh 3.7V; - collapsible, adjustable bar, the lower part is durable plastic, the upper part is high-strength aluminum, covered with factory powder paint; - the board is of high quality, factory-made, double-sided with a protective mask and metallization of the holes. For power: 1. In a complete set, the unit is powered by 3.7 V (18650 lithium battery 2200 mAh). BATTERIES NOT INCLUDED 2. If you make your own power supply, you can use from 2 to 12 V. 3. Power connector for a 5.5x2.1 mm plug. 4. The pinout of the detector connector is as follows: 1 - RX + 2 - RX - 3 - screen 4 - TX + 5 - TX - 5. Sensor frequency: 7.2 kHz (default). 6. TX-RX range: 1.7-1.8 kHz. Detection range of the Fortune M3/Fortune M 3 metal detector by air: DD 320x300 mm 7 kgz/current 86 mA/frequency spacing 1.8 kHz/sens 6. 5 kopecks. USSR 1981: 41 cm; 3 copies of 1910: 37 cm. average detection range in the air = 32-57 cm per coin; large metal objects up to 150-200 cm. Scope of delivery: Collapsible bar. Charging device. Detector. BATTERY PACK. Functional unit of the device. Instructions. The battery; Battery charger; Instructions.
